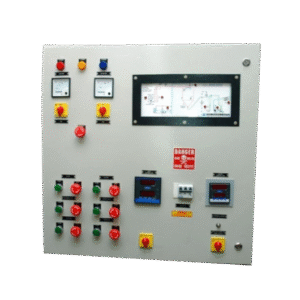

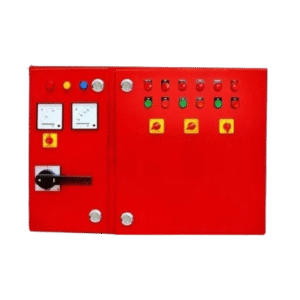

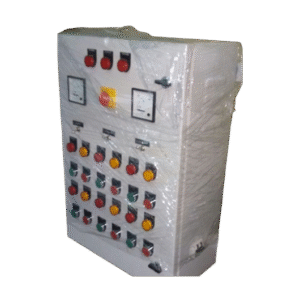

Key Features
Integrated control for both main fire pump and jockey pump
Automatic operation based on system pressure via sensor/switch
Manual/auto mode selector with test run capability
Real-time status display for both pumps (run/fault/ready)
Built-in protections: phase failure, overload, dry run, short circuit
Alarm system: visual/audible alerts for fault, low pressure, pump run
Fire signal input (potential-free contact) for automatic main pump start
Emergency override switch for main pump operation
Technical Specifications
| Parameter | Details |
|---|---|
| Brand | Power Pro |
| Phase | Three-Phase |
| Operating Voltage | 380 – 440V AC |
| Frequency Range | 50/60 Hz |
| Pump Types Supported | Centrifugal, submersible (typical) |
| Hp Range | 0.5 HP to 5 HP |
| Panel Material | CRCA sheet , Powder coated. |
| Feedback Device | Pressure sensor or flow sensor |
| Cooling Method | Forced cooling (for >15 HP) |
| Control System | Pressure switch-based or sensor-based (VFD) |
Applications
- Diesel-driven fire pump applications where electric supply is unreliable or not available
- Compliant with NFPA 20, IS 13039, and other fire safety codes
- Essential in large-scale fire safety systems in industries, refineries, hospitals, malls, and warehouses
- Functions independently from main fire alarm/BMS systems
- Ensures pump operation even during complete electrical failure
