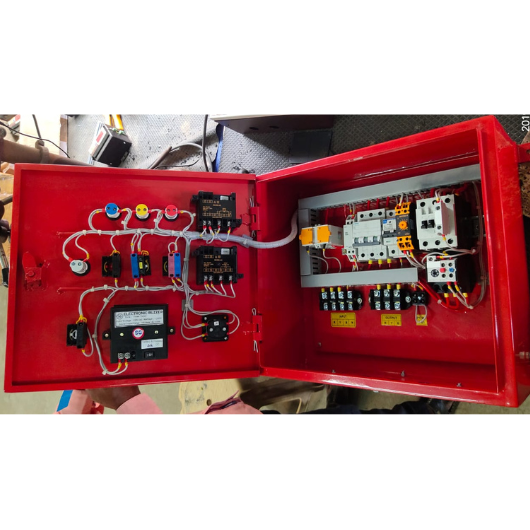

Key Features
Integrated control for both main fire pump and jockey pump
Automatic operation based on system pressure via sensor/switch
Priority logic: jockey pump handles minor pressure drops; main pump starts only during major pressure drop or fire event

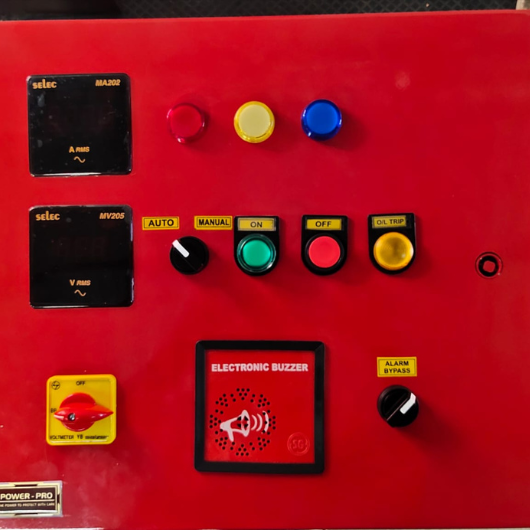

Manual/auto mode selector with test run capability
Real-time status display for both pumps (run/fault/ready)
Built-in protections: phase failure, overload, dry run, short circuit
Alarm system: visual/audible alerts for fault, low pressure, pump run
Fire signal input (potential-free contact) for automatic main pump start
Emergency override switch for main pump operation
Technical Specifications
| Parameter | Details |
|---|---|
| Brand | Power Pro |
| Phase | Three-Phase |
| Operating voltage | 380 – 440V AC |
| Frequency Range | 50/60 Hz |
| Pump Types Supported | Centrifugal, submersible (typical) |
| Hp Range | 0.5 HP to 5 HP |
| Panel Material | CRCA sheet , Powder coated. |
| Feedback Device | Pressure sensor or flow sensor |
| Cooling Method | Forced cooling (for >15 HP) |
| Control System | Pressure switch-based or sensor-based |
Applications
- Fire suppression systems in commercial, residential, and industrial premises
- High-rise buildings and large water demand systems
- Systems requiring backup pressure management and quick response
- Integrates seamlessly with hydrant, sprinkler, and deluge systems
