Key Features
PLC with alternation & assist logic
Pressure transducer input
1 Pump DOL (fixed speed) as standby or assist
Dry run, fault override, HMI optional
Standby starts if lead pump fails
Auto alternation for equal runtime (1W+1S)
Assist mode during peak load (1W+1Assist)

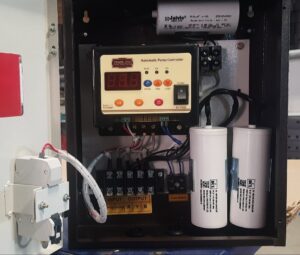

1 Pump with VFD
Technical Specifications
| Parameter | Details |
|---|---|
| Brand | Power Pro |
| Phase | Three-Phase |
| Operating Voltage | 380 – 440V AC |
| Frequency Range | 50/60 Hz |
| PumpTypes Supported | Centrifugal, Multistage, Vertical, Monoblock |
| Hp Range | 1 HP to 30 HP |
| Panel Material | CRCA sheet , Powder coated. |
| Feedback device | Pressure Transducer (4–20 mA) |
| Cooling Method | Natural air cooled or Forced cooling (for >15 HP) |
| Control System | Programmable Logic Controller (PLC) |
Applications
- RO/UF systems with moderate flow requirements
- small commercial buildings
